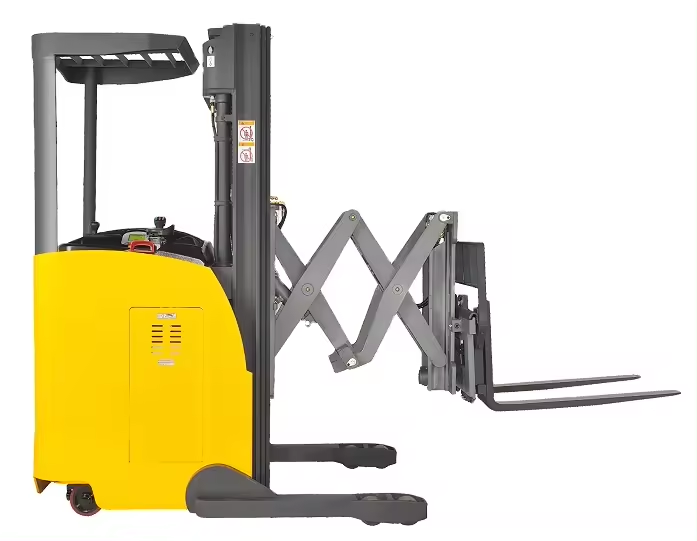

Everlift 2 ton 6 m Double Scissor Reach Truck electric stacker forklift seated With Narrow Aisle china forklift electric stacker
PRODUCT ADVANTAGE
Capacity:12000kg
1230 Curtis controller，AC driving motor
Fork Length:1150 mm
Width for fork : 570/695 mm
Lift height is 2m-6m Max with dueplex mast and 3stages mast
Good field of view for the operator, Small turning radius
24v/210Ah Lead-acid battery,long use time and long time.
Strong structure body and strengthen fork, no bending
Emergecy stop/hour meter/Battery level indicator
TECHNICAL PARAMETERS
Features
Model
ELES-CDD20H
Power type
Electric
Drive model
Stand on
Load capacity
Q（kg）
2000
Load center
c(mm)
500
Front overhang
x(mm)
830
Wheel base
Y(mm)
1184
Weight
Weight(with battery)
kg
656
Wheel
Wheel type
PU
Loading wheel size
Φ230x75
Driving wheel size
Φ82x96
Balance wheel size
Φ100x40
Wheel quantity (x = Driving wheel)
1X+2/4
Driving wheel base
mm
518
Balance wheel
mm
380/515
Parameter
Lift height
mm
3000/3500
Handle height
mm
740/1080
Lowered of fork height
mm
82
Overall length
mm
1896
Fork length
mm
1150/1200
Overall width
mm
800
Fork size
S/e/l(mm)
65x340x(1150/1200)
Outside width of forks
mm
550/685
Wheelbase Center Ground 30 Clearance
mm
30
Min. Aisle width for pallets 800x1200
mm
2027/2027/2047
Min. Aisle width for pallets A(mm)
1000x1200
mm
2415
Turning radius
mm
2415
Performance
Travel speed,laden/unladen
Km/h
4.5/5
Lift speed,laden/unladen
m/s
0.40/0.40
Lowering speed,laden/unladen
m/s
0.70/0.60
Gradeability laden/unladen
%
5/10
Brake
Electromagnetic
Motor
Drive motor
kW
1.3
Lift motor
kW
0.8
Battery capacity
V/Ah
24
Battery weight
Kg
210
Battery size(LxWcH)
mm
573X177>516
The noise level at the driver’s ears complies with DIN12053
dB(A)
70
SCENES SOLUTION
Factory
General Warehouse
Work Shop
Freight
Building Material
Retail
Ningbo EverLIFT Machinery Co., ltd. is a Hi-Tech enterprise involving in research, manufacture and marketing. Our main products are various kinds of materials handling equipments including hand pallet truck, electric pallet truck , electric stackers, forklift truck, aerial working platform and so on.
Ever since the group was founded, we have developed more than three manufacturing branches in China. With advanced management and strong technical innovative strength, we are tops among OEM manufactures throughout China. We have brought our products to more than 100 countries and established sales/service sites in many area like Asia, Australia, Europe and America, Middle East etc.
Our mode of transportation is generally by sea and container. Work with reliable logistics to ensure our machines are protected from any damage in transit. Each package is carefully handled to minimize the impact of shock and vibration on the product.
FAQs
How long is the Warranty for EVERLIFT product?
EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.
How about the delivery time?
Usually EverLIFT producing time is 15-20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.
Can EverLIFT provide customized products? OEM products or ODM products?
Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
What's the specification of the chargers?
Our chargers voltage could be 110V 220V 240 380V 415V ( 1phase or 3 phases, 50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Could we request our own color for the products?
Yes, of course, you just need to offer us the RAL code.
